Overview

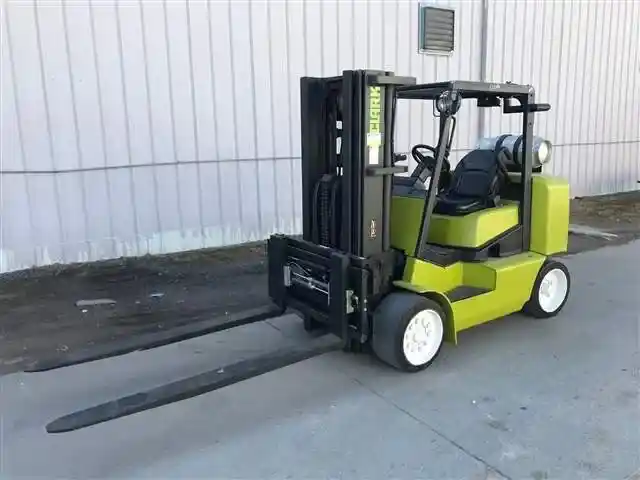

10,000 lbs Capacity<br> Cushion Tires<br> LPG Fuel<br> Triple Stage Mast 162"<br> Side Shift Fork Positioner Attachment<br> Pallet Forks 42"<br> Hour Meter Reading: 1043<br> Available for Rent Only<br> Location: Wichita, KS<br> Lift Parts Service is proud to be the oldest lift truck company in Kansas! Serving the Kansas area for more than 55 years we specialize in new and used forklift sales, replacement parts, rentals and service repairs. Today we are happy to continue to serve the state of Kansas, supporting all makes and models. Contact us today and take advantage of our services!<br>
Specifications
General
| Manufacturer | CLARK |
|---|---|
| Model | CGC50 |
| Year | 2014 |
| Price | Available for Rent |
| Category | Forklifts / Lift Trucks |
| Subcategory | IC Cushion |
| Condition | Used |
| Stock Number | CL0196 |
| Serial | CGC470L-0196-9861 |
| Hours | 1043 |
Operational
| Tires | Cushion<br>Front: 22 x 12 x 16 in.<br>Rear: 22 x 7 x 16 in. |
|---|---|
| Wheels | Front: 2 (driven)<br>Rear: 2 |
| Capacity | 10,000 lbs. (5,000 kg) |
| Max Lift Height | Standard: 116 in. (2,946 mm) |
| Right Angle Stack | 116 in. (2,946 mm) |
| Lift Speed | Loaded / Unloaded: <br>89 / 111 fpm (0.45 / 0.56 m/s) |
| Lower Speed | Loaded / Unloaded: <br>78 / 92 fpm (0.39 / 0.47 m/s) |
| Operator Type | Rider counterbalanced |
| Axle Load | Front (Loaded / Unloaded):<br>22,431 / 6,504 lbs. (10,175 / 2,950 kg)<br>Rear (Loaded / Unloaded):<br>2,421 / 8,348 lbs. (1,098 / 3,787 kg) |
| Carriage | 49 in. (1,245 mm) hook type |
| Forks | Thickness: 2 in. (50 mm)<br>Width: 6 in. (152 mm)<br>Length: 48 in. (1,220 mm) |
| Travel Speed | Loaded / Unloaded:<br> 12.1 / 12.4 mph (19.5 / 20 km/h) |
| Load Center | 24 in. (500 mm) |
| Gradeability | Loaded / Unloaded: 20.1 / 18% |
Engine & Drivetrain
| Engine Make | GM |
|---|---|
| Engine Model | Vortec 4300LT |
| Brakes | Service: Power assist disc |
| Horsepower | 93 hp (69 kW) @ 2,400 rpm |
| Displacement | 262 ci |
| Engine Type | 4.3 l |
| Fuel Type | LPG |
| Cylinders | 6 |
